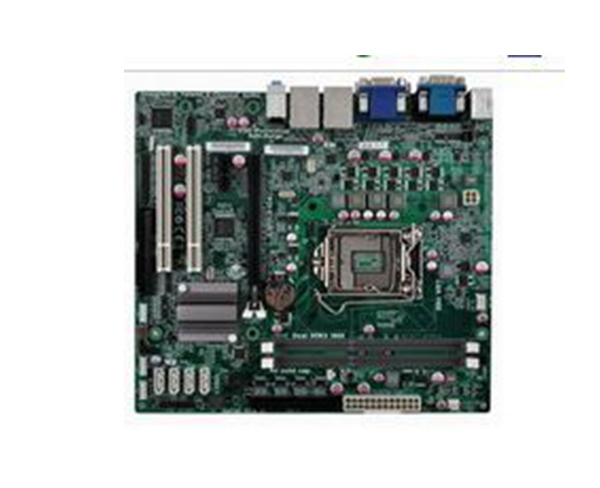

產品規格

>> System

Processor                           LGA1155 for Intel Core i3/i5/i7/Pentium/Celeron Processors

Support Sandy Bridge and Ivy Bridge CPU

Chipset                               Intel H61 PCH

DRAM                                  2 x 240pin DDR3 1600/1333MHz DIMM up to 16GB

BIOS                                   32Mb AMI Flash ROM

Power Supply                     Standard ATX power

Watchdog                           Watchdog timer function

Dimension                           244mm x 220mm

>> I/O Ports

HDD                                    4 x SATA 2.0

Serial Port                          9 x RS232 + 1 x RS232/422/485 (Auto Flow control function) COM ports

Parallel                               1 x LPT port support with ECP/EPP/SPP mode

Audio                                  Realtek ALC662 High Definition Audio, line-out, line-in and MIC

Keyboard/Mouse                1 x Mini-DIN port for PS/2 Keyboard and Mouse

LAN                                    2 x Realtek 8111E PCI-E Gigabit controller

USB                                    10 x USB2.0

Digital I/O                           1 x 8 bits Digital I/O connector

Expansion                          1 x PCI-Ex16,  1 x PCI-E x1, 2 x PCI slots

>> Display

Graphics                             Intel Integrated Graphics Engine with HD Graphics

VGA                                    1 x VGA port ,2048x1536 @ 75Hz max Resolution

DVI-D                                 1 x DVI-D port ,1920 x 1200@60Hz max Resolution

>> Environment

Operation Temperature      0°~60°C (32°~140°F)

Humidity                             10~90%
