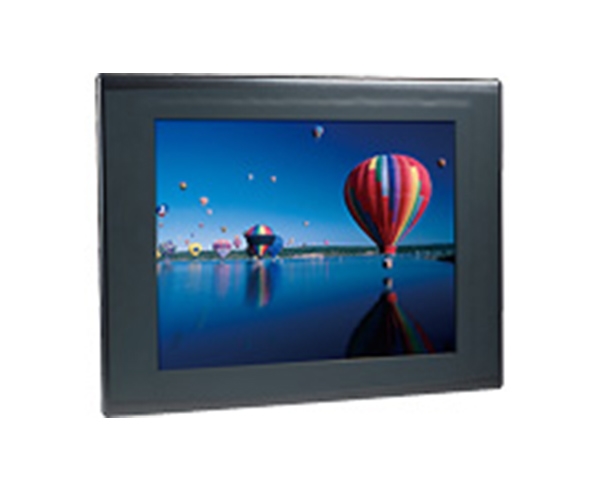

APPC 1210T
12.1" TFT LED 4:3 平板PC,Intel® Atom? N270 1.6 GHz, 觸摸屏, 1GB DDR2, 4xUSB, 4xCOM 和 VGA
Main Features
-
4:3 12.1" 無風扇LED 平板計算機
-
Intel® Atom? N270, 低功耗CPU
-
完全統一的5線觸摸屏
-
雙千兆網,第2路顯示接口 VGA
-
USB x4/2xmini-PCIe/1xCF/2x RS232/422/485, PS2 KB/MS
-
可選WiFi模塊, 2.5"HDD, 2xCOMs
-
DDR2 1GB; 2.5" HDD 支架.
-
IP65 防護前置
-
裝配支架:面板/墻壁/豎立/VESA 100mmx100mm
-
寬壓輸入:9V~36V
Specifications
|
面板
|
-
LED Size: 12.1", 4:3
-
Resolution: SVGA, 800x600
-
Luminance: 350cd/m2
-
Contrast ratio: 400
-
Viewing angle: 55(U), 65(D), 65(L), 65(R )
-
Backlight:LED
-
Touch screen: 5-line Resistive
-
Touch light transmission: 80%
-
Touch interface: USB
|
|
系統
|
-
CPU: Intel® Atom? N270 1.6GHz
-
BIOS: Award 8M bit Flash BIOS
-
I/O chip: ITE8783
-
System memory: 1GB DDR2 support up to 2GB DDR2 400/533
-
SSD: One CF socket by IDE support Type I/II Compact Flash Card
-
Hard drive bay: Optional 2.5" SATA HDD or SATA DOM
-
Watchdog timer: Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
-
H/W status monitor: Monitoring system temperature, and voltage
-
Expansion: 2x Mini-PCIe
|
|
后面板 I/O
|
-
Serial port: 2xRS232/422/485(Isolation for APPC1211T)
-
Optional : 2xCOM(optional), DIO
-
Ethernet: 2xRJ45
-
2nd display: VGA port, 1xDB15
-
Audio port: Line out
-
USB: 4xUSB 2.0
-
PS2 Keyboard/Mouse
-
Power Switch
|
|
音頻
|
-
AC97 cordec: Realtek ALC888
-
Audio interface: Connector: Line out
|
|
以太網絡
|
-
LAN chip: Dual Intel 82574L Gigabit LAN
-
Ethernet interface: 10/100/1000 Based-Tx Fast Ethernet compatible
|
|
機械構造&環境
|
-
Color: Pantone black U
-
IP protection: IP65 front
-
Mounting: Panel/Wall/Stand/VESA 100mmx100mm
-
Power input: 9V~36V
-
Power adaptor: Optional AC power adaptor(+12V)
-
Vibration: Vibration Protection with Commercial SATA HDD only IEC 68 2-64 @ SINE condition 2 Grms @ sine, 5 ~ 500 Hz, 1O ct./min, 1hr/axis Vibration Protection with Commercial SATA HDD only IEC 68 2-64 @ Random condition 0.3 Grms @ sine, 5 ~ 500 Hz, 1O ct./min, 1hr/axis
-
Shock: IEC 68 2-27 CompactFlash®: 50 G @ wall mount, half sine, 11 ms HDD: 30 G @ wall mount, half sine, 16 ms
-
Operating Temperature: 0 to 45°C
-
Storage temperature: -20 to 75°C
-
Operating humidity: 5%~90% relative humidity, non-condensing
-
Dimension: 317x243x68mm
-
Weight: 3.0 Kg
|
|
