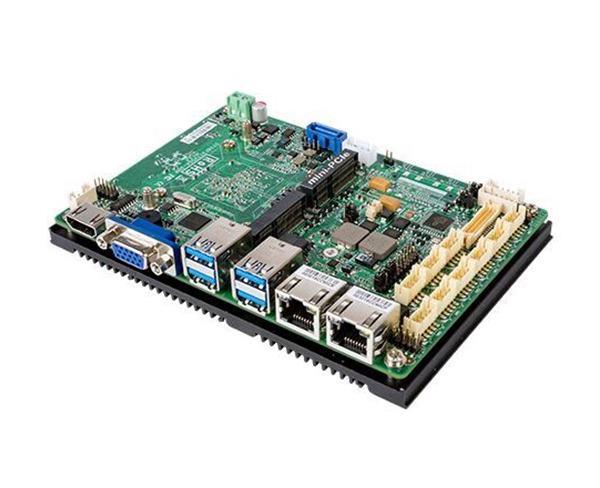

SYS8F377VGGA-3OM
產(chǎn)品規(guī)格
|
Processor |
CPU |
N3160 (Braswell SoC) |
|
Frequency |
2.24GHz (4C/4T) |
|
|
TDP |
Up to 6W |
|
|
BIOS |
AMI UEFI |
|
|
DRAM |
Technology |
DDR3L 1600MHz |
|
Capacity |
4GB |
|
|
Socket |
On-board (Dual Channel) |
|
|
Display |
Graphics |
Within Braswell SoC Support DX11.1 & OpenCL 1.2 |
|
Graphics Memory |
Share System memory up to 1.7GB SDRAM |
|
|
VGA |
1 (Pin-Header) |
|
|
HDMI |
1 (Up to 2560x1600@60Hz) |
|
|
LVDS |
24bit Dual Channel |
|
|
eDP |
1 (Up to 2560x1440@60Hz) |
|
|
Multiple Display |
Two or Three Independent displays |
|
|
LAN |
2*intel LAN (i211-AT+ i210-AT) |
|
|
Audio |
Realtek ALC887 with Line-in/MIC/Line-out |
|
|
Watchdog |
1~255 Watchdog Times |
|
|
Storage |
SATA |
1 x SATA3.0 (6Gb/s) |
|
mSATA |
1 (Full-Size) |
|
|
I/O |
COM Port |
6 x RS232(COM1&COM2 Support RS232/422/485, |
|
LPT |
N/A |
|
|
USB |
4 x USB3.0 + 3 x USB2.0 |
|
|
GPIO |
8 x In , 8-Out |
|
|
PS/2 |
1 |
|
|
Expansion Slot |
PCI104 |
1 |
|
SIM |
1 |
|
|
Mini PCIe |
1 |
|
|
Power |
DC-In |
DC9V-24V In |
|
DC-Out |
Support 5V/12V Out for 2.5" or 3.5" HDD |
|
|
Form Factor |
165mm x 115mm (EPIC) |
|
|
Environment |
Operation Temp & Humidity |
-10~70℃ /10~90%,non-condensing |
|
Storage Temp & Humidity |
-20~80℃ /10~90%,non-condensing |
|
|
Certification |
EMC |
CE / FCC |
|
O.S |
Windows 10 64Bit Windows 7 32/64-Bit (Pro/WES7/WE POSready7) Windows 8.1 64-Bit /Linux Kernel 3.14+ |
|
